RFID Loop-Lock Tags

  • Read distance up to 30 feet
  • Great for horticulture, forestry, packaging
  • Very durable—withstands outdoor environments, UV, chemicals & oils
  • Barcode and serialization available

Related products

Description

SmartMark RFID Logo

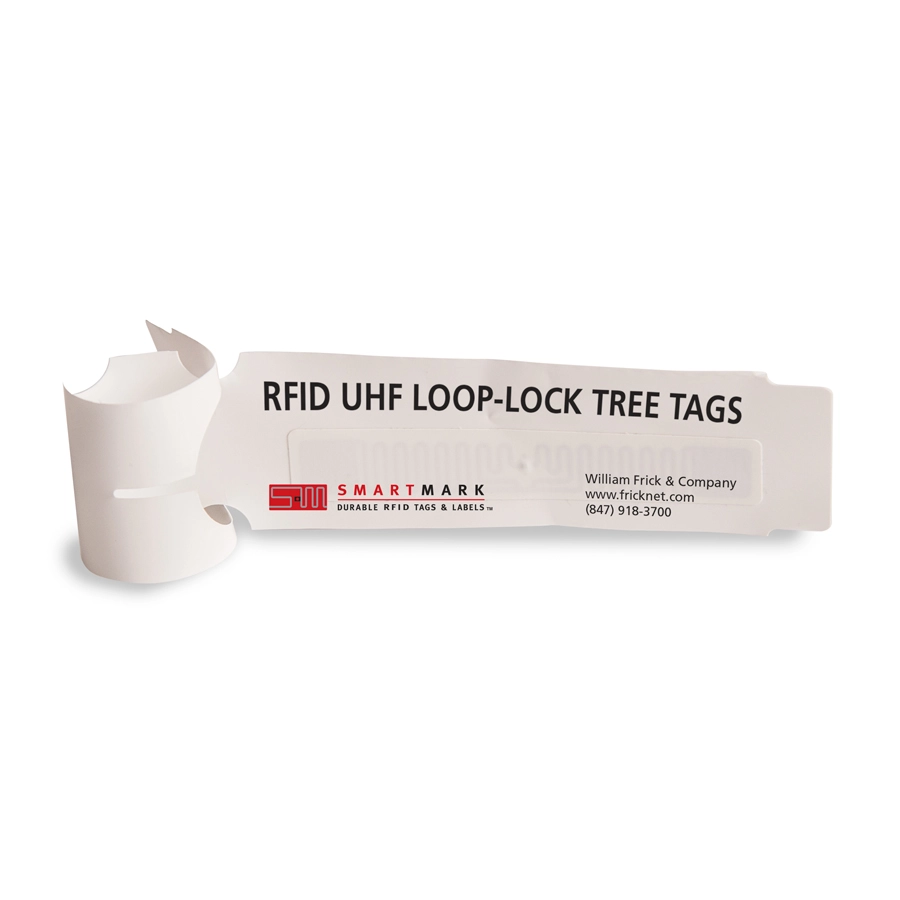

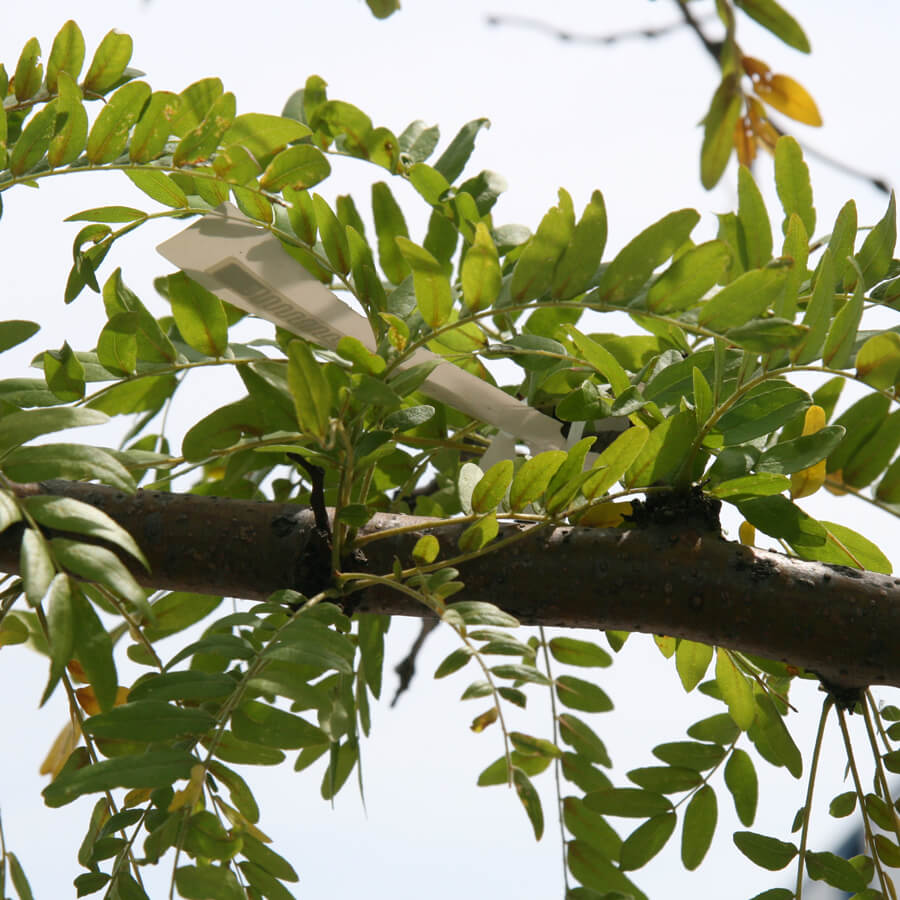

Choose the RFID Loop-Lock Tag, part number WF-SM-71, as an economical long-lasting solution to printing outdoor tags and labels. It features a unique locking design for quick and simple labeling. Great for tracking and organizing a variety of products such as packages, electrical products, automotive parts and more. It is especially useful in horticultural plant-tracking applications such as monitoring medical and recreational marijuana.

Constructed of a UV-stabilized high-strength, cross-laminated polyethylene film, this durable tag resists tearing in all directions and maintains material integrity even under harsh environments. Withstands rough handling and repeated use. Made of recyclable materials.

Tag features excellent print quality. Order pre-printed labels or print on-demand using your own thermal transfer printer. Side-by-side label configuration prints faster and clearer than end-to-end labels; uses less waste.

Additional information

Model Number

WF-SM-71 Loop-Lock RFID Tag

Applications

Identification Labeling, Asset Marking, Asset Tracking, Barcode Labeling, Harsh Environments, Outdoor Use, Product Marking, Serial labels

Material

Cross-laminated HDPE

Size

7.0" x 1.25"

Overall Thickness

6.5 mil

Temperature Service Range

-70°F to 200°F

Expected Outdoor Life

1 year

Water Resistance

Very Good

Abrasion Resistance

Fair

Solvents Resistance

Good

Shelf Life

Stored at 72F / 50% Relative Humidity, 2 Years

RFID Performance

RFID Protocol EPC Class 1 Gen 2; ISO 18000-6C
Tag Type Passive Read/Write
Frequency Range 860 – 960 MHz (Global)
User Memory 512 bits
EPC Memory 96 bits
IC Alien®

*Other single record and dual record chips available.

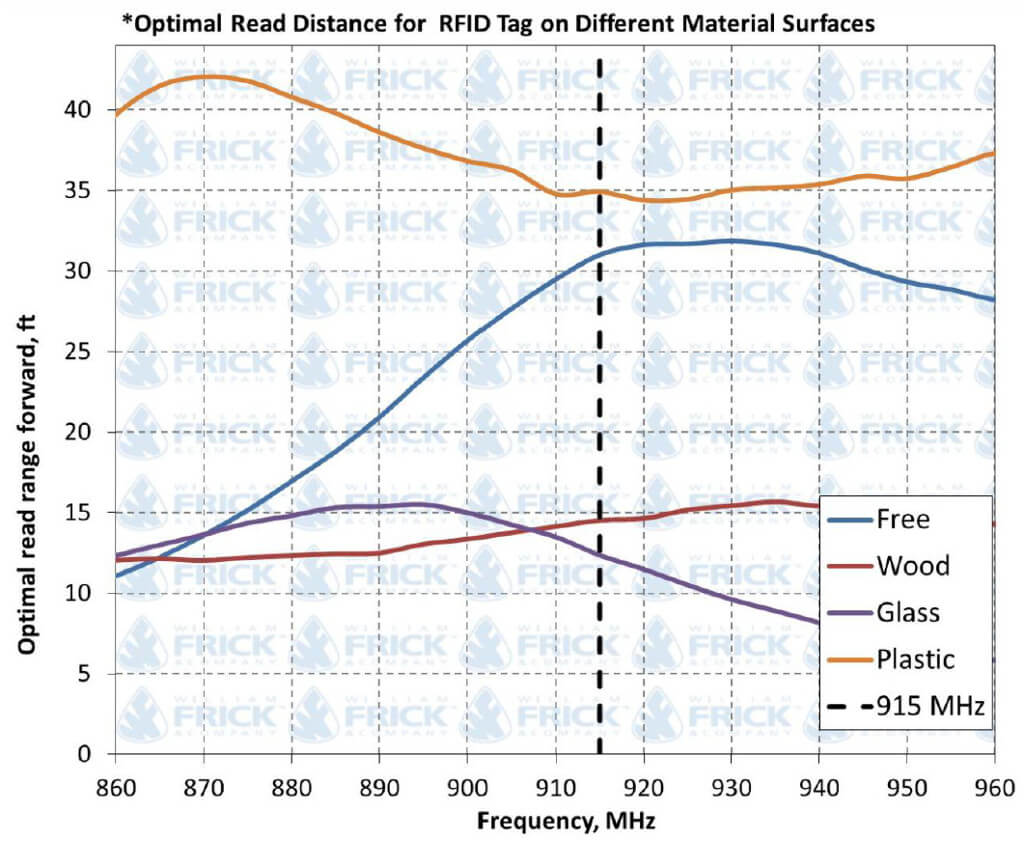

Optimal Read Range* on Different Material Surfaces:

Loop-Lock RFID Tag Read Range Graph

*Tag performance was measured free of material influence. Actual read ranges may differ depending on conditions such as environment, tag placements, hardware, etc.
