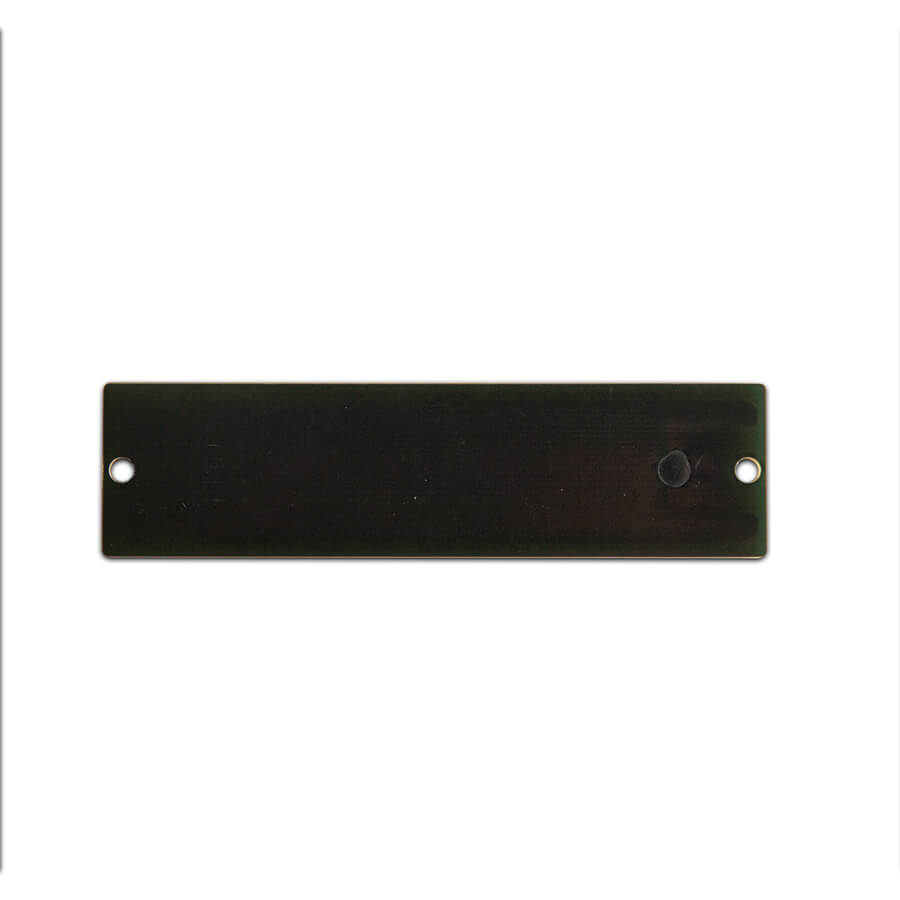

Metal Mount Dual Record RFID Tags
- Durable construction for harsh environments
- Up to 16 ft. read range
- Complies with SAE AS5678A
- Label or laser-etch with 1D, 2D or human readable information
Related products
Description

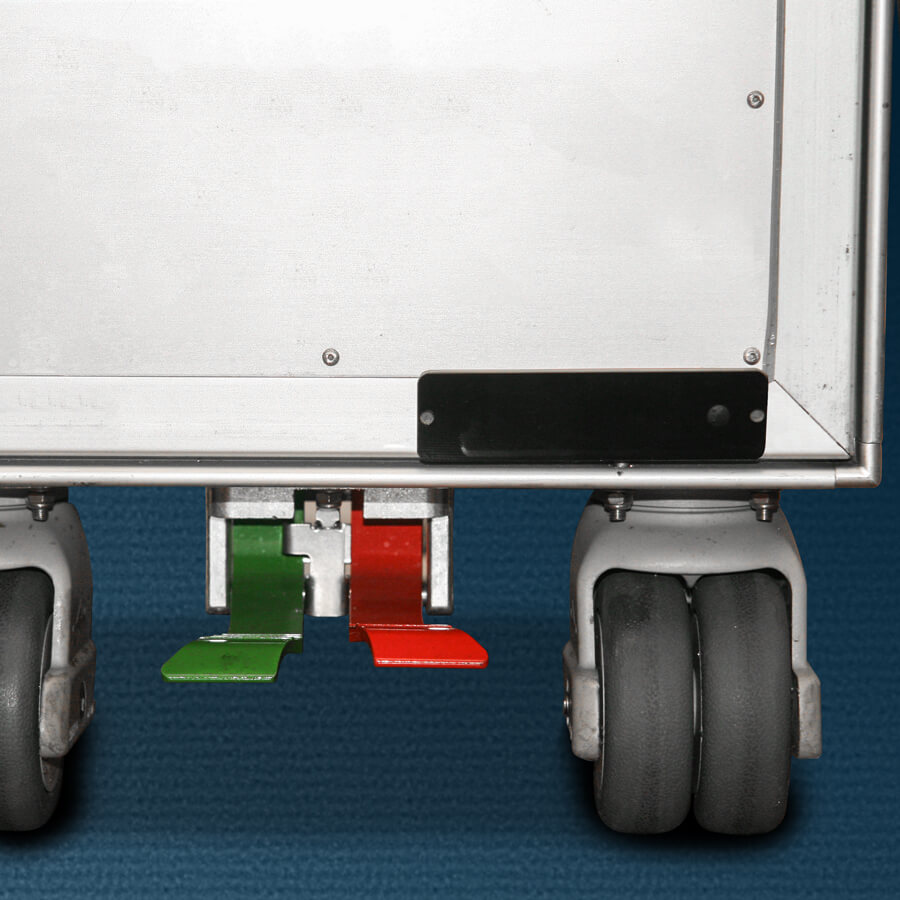

Our Metal Mount Dual Record RFID Tags are ideal for aviation and aerospace asset management, small equipment and facility management, control board tracking, and vehicle management. The large user memory stores birth record and serial data while the remaining information is left unlocked for asset lifecycle and maintenance data.
Two rivet holes backed by an aggressive adhesive ensures the tag will securely adhere to various materials. Label or laser-etched these tags with 1D and 2D barcodes, human-readable data, company information, logos, and more. RoHS compliance.
Additional information
| Model Number | WF-SM-AT04-2 Dual-Record Metal Mount RFID Tag |
|---|---|
| Applications | Container Tagging, Outdoor Use |
| Size | 3.740” x 0.980” x 0.145” |
| Mass | 0.62 oz |
| Temperature Service Range | -40°F to 185°F |
| Water Resistance | Very Good |
| Solvents Resistance | Very Good |
| Abrasion Resistance | Very Good |
| Shelf Life | 2 Years, Stored at 70F and 50% Relative Humidity |
RFID Performance
| RFID Protocol | EPC Class 1 Gen 2 |
| Tag Type | Passive Read/Write |
| Frequency Range | 865 – 928 MHz (Global) |
| User Memory | 512-2048 bits |
| EPC Memory | 96-496 bits |
| IC | Alien® Higgs® 3 |
