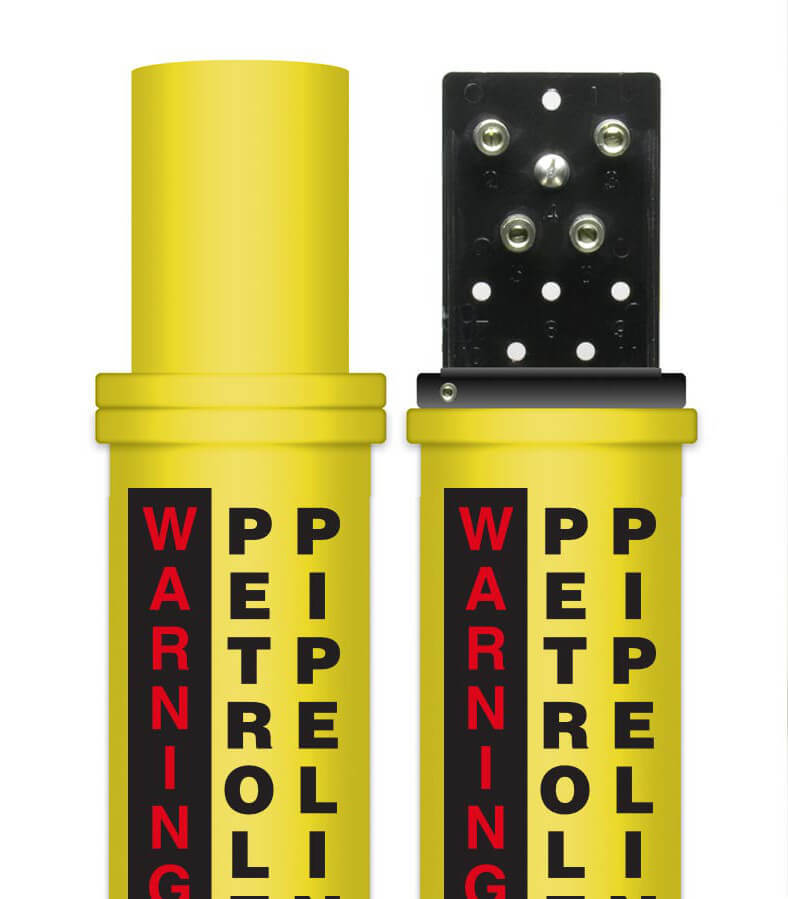

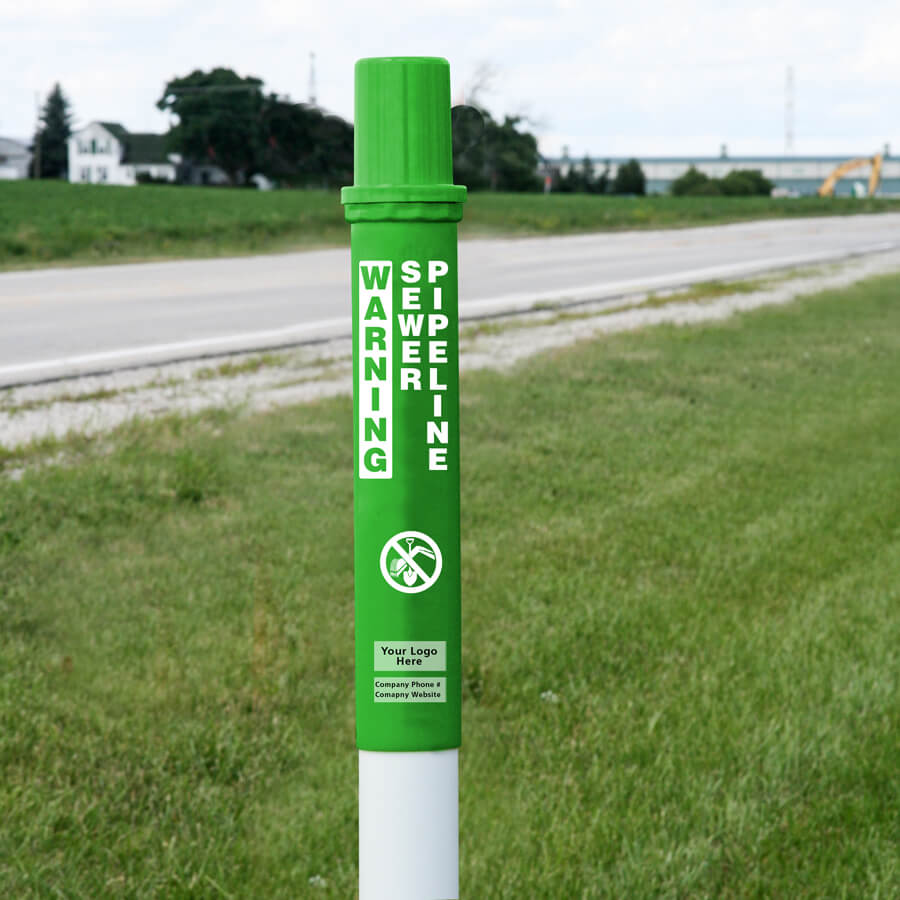

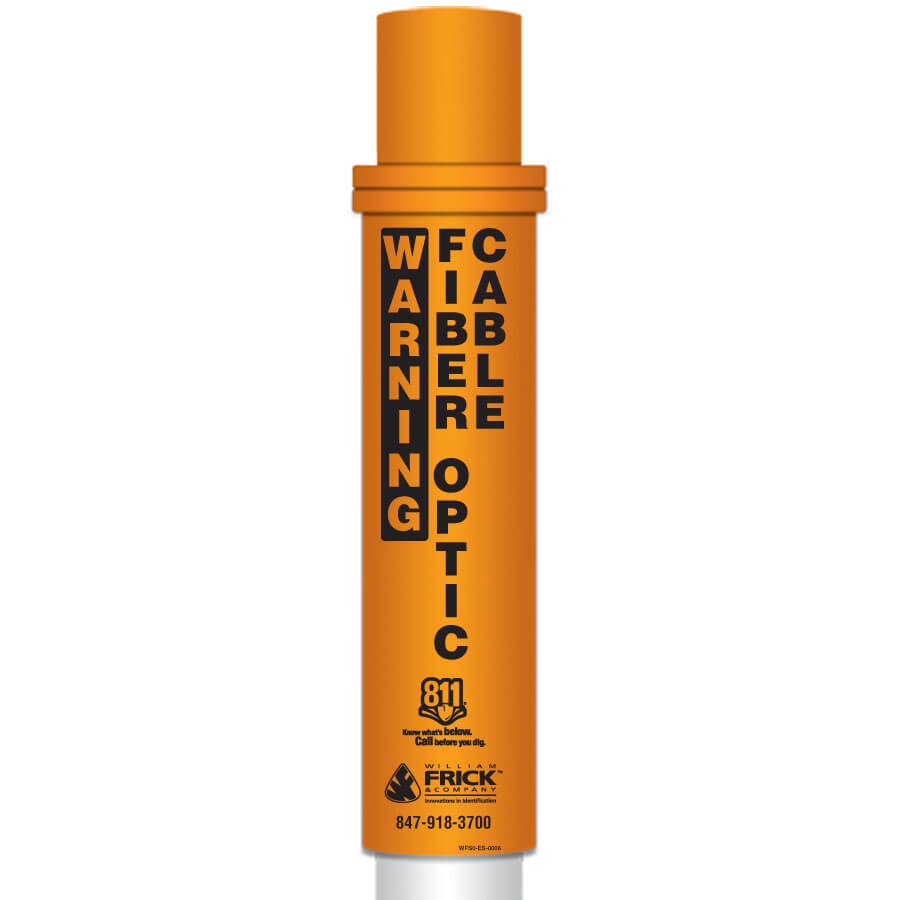

TestPost® Test Station Markers

  • 360° visibility
  • In-mold graphics with a lifetime guarantee against peeling, chipping or fading
  • Includes 5 standard stainless steel terminals
  • Custom options include: RFID, terminals, sizes, colors, graphics and compression lugs for easier wire attachment
  • Shop Now

Related products

Description

TestPost® markers add a terminal/test station to standard marker posts. Enclosures are constructed of Lexan® polycarbonate high-impact plastic and feature rugged stainless steel hardware. Each unit comes with five standard terminals. Special compression lugs are available for easier wire attachment. Anchor bar included with each marker. This cathodic test post is fade resistant and UV stable. Comes standard with a 3.5″ diameter shaft with 11 terminals; also available in a 1.5″ size with two standard terminals.

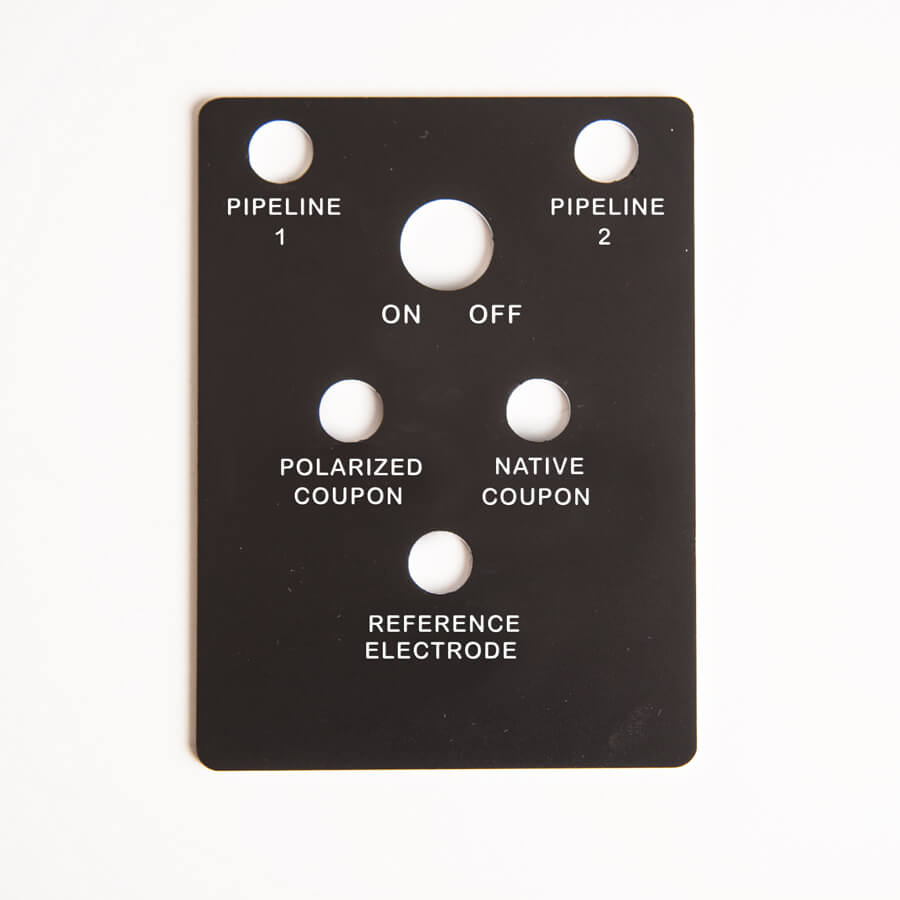

Custom Faceplate

TestPost Faceplate

Test posts are also available with a specially designed, fully customizable faceplate. This scratch-and impact-resistant terminal faceplate is designed to withstand harsh outdoor elements and excessive handling by field crews. Permanent lettering ensures descriptions won’t wear out. Easily made to order with custom text, layout and number of holes.



Why Our TestPost® Markers are Better

Premium Construction–outdoor durable marker posts feature Lexan polycarbonate cap and 100% prime high-density polyethylene body. The UV-stabilized plastics prevent warping and are designed to withstand harsh outdoor environments for 20-20+ years.



Embedded Graphics–unlike surface or screen-printed marker posts, our custom graphics are permanently molded into the polyethylene material. Graphics won’t fade, chip or peel and cannot be scratched off, ensuring your underground utility remains clearly marked. Permanent printing will even withstand harsh solvents used for removing graffiti.



Color Legends–high-visibility colors conform to US DOT regulations. Available in APWA uniform color codes (see chart below).



APWA Uniform Color Codes

ColorUnderground Utility Mains
OrangeTelecommunications Utility: alarm or signal lines, fiber optic cables, or conduit
RedElectric Utility: electrical power lines, cables or conduit, and lighting cables
YellowOil & Natural Gas Utilities: oil, steam, petroleum, or other gaseous or flammable material
BlueWater Utility: potable water
GreenWastewater Utility: sewage and drain lines
PinkTemporary Surveys
WhiteProposed excavation limits or route

Additional information

Model Number

WFS-ES-0006 TestPost Test Station Marker

Applications

Gas, Harsh Environments, Oil, Outdoor Use, Safety & Compliance, Utility Labeling, Water Pipelines

Material

Rigid PVC Plastic

Size

6\\' or 8\\' tall. 3.5" OD

Expected Outdoor Life

Guaranteed for life against fade, peel or chip

Temperature Service Range

-40°F to 185°F

Minimum Application Temperature

Any temperature as long as the ground is not frozen

Colors

Black, Orange, Blue, Green, Red, White, Yellow

Water Resistance

Excellent

Solvents Resistance

Excellent

UV Resistance

Excellent

Abrasion Resistance

Excellent

Shelf Life

Completely Stable, Stored at 70F and 50% Relative Humidity
